The Y-LX type ultrasonic bottle washing machine is used for cleaning 10-30 diameter outer diameter, Xilin bottle and infusion bottle.

It is simple and practical to use the bulk into the bottle.

The use of mechanical hand bottle can be applied to various specifications bottles

Use tracking and inserting water and steam to ensure low quality and low consumption of water and steam.

Using PLC program control, touch screen function display and operation.

Equipment Features:

The bottle of the bulk is entered into the ultrasonic cleaning tank by the bottle of the bottle. After about 30-80 seconds of ultrasonic cleaning, the bottle is sent to the lifting dialing wheel to enter the big drum and is clamped by the manipulator, then the 180 degree bottle mouth is turned down, and as the large turntable is rotated clockwise. In the lower part of the large turntable, the 6 assembly of the water spray (steam) tube is followed by the injection of a spray (steam) tube. The injection needle is inserted into the bottle to carry out two cycles of water, a compressed air, a fresh water, and a two time to purify the compressed air. At the same time, the water vapor is also washed outside the bottle to complete the cleaning process of the bottle. After the bottle is washed, the bottle is washed by the manipulator. The bottle is turned right (the bottle is upwards) and the bottle is sent to the tunnel oven by the dial wheel. The bottle washing machine controls the production capacity of the bottle washing machine by means of frequency conversion speed control, and controls and adjusts the sequence coordination of each process of the bottle washing process through the PLC program.

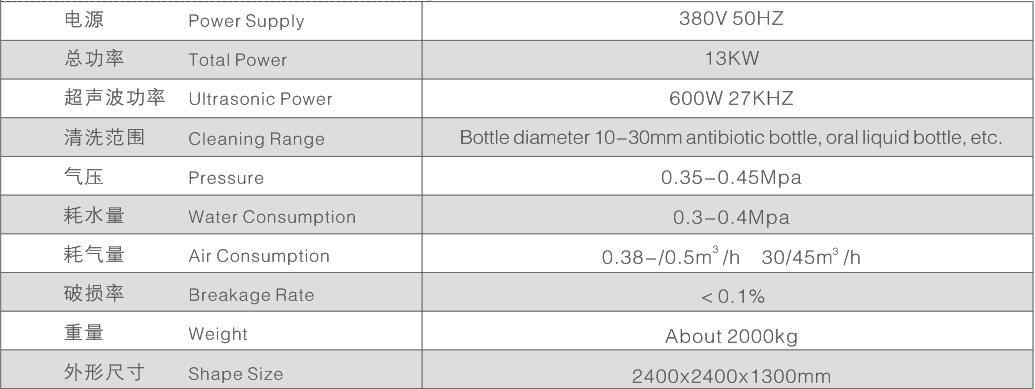

Technical Parameter:
