Y-XZ Cilin bottle capping machine is a planetary mechanism, which adjusts the difference energy of the shape and size of the bottle by itself, reduces the broken rate of the bottle and improves the qualified rate of the cap rolling. The bottle is sent through the dial wheel to the bottle outlet track and then directly brought into the bottle tray to deliver the machine.

Equipment Features:

The DZG single blade capping machine is suitable for sealing the 5ml-25ml antibiotic control bottle. It can automatically finish the process of filling bottles, entering bottles, covering and rolling out bottles. Rolling type planetary mechanism is adopted in the rolling cover, which has the characteristics of solid rolling, good seal, smooth and no crease, no trace, high crushing rate and simple operation. The control part adopts variable frequency speed regulation to achieve stepless speed regulation function. If the protective cover is available, it can be done separately.

Working Principle:

The bottle control mechanism transfers the scattered bottles to the dial wheel, and then enters the turntable to cover and cover. The lid is an electromagnetic swing cap that vibrate in the oscillator by the vibration of the electromagnet in the hopper of the oscillator, so that the disorderly aluminum cover inside the bucket is arranged in an orderly arrangement, thus entering the guide for the upper cover. Rolling is a planetary mechanism by rolling. It can adjust itself to the size of the bottle, reduce the breakage rate of the bottle, and increase the pass rate of the lid. The bottle is sent through the dial wheel to the bottle outlet track and then directly brought into the bottle tray to deliver the machine.

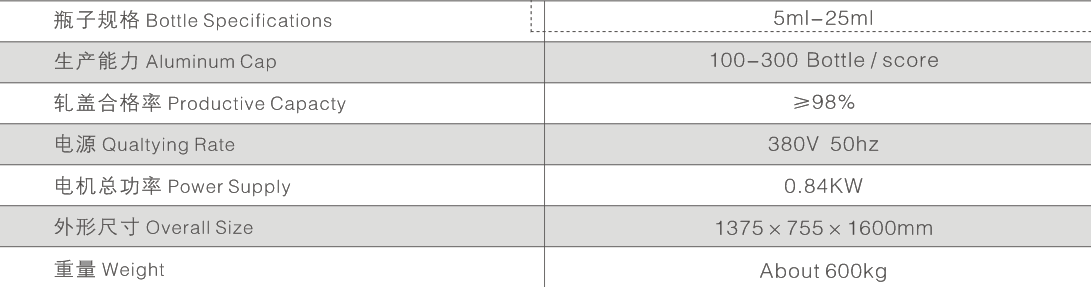

Technical Parameter:
