The Y-KGZ type oral liquid filling mill is a high yield liquid filling equipment for oral liquid. It is suitable for 5-25ml oral liquid preparation and liquid filling and sealing.

Equipment Features:

Meet the requirements of GMP specification

High production capacity of 12 head filling and rolling cover

The function of bottle - free irrigation

PLC program control, touch screen function display and operation

Control of production capacity by variable frequency speed regulation

The bottle enters the rolling mill and is fed into the bottle net belt and the variable pitch screw, and then the disc is fed into the filling head of 12 heads by the dial plate, and rotated clockwise.

The feed liquid is supplied from the glass mercury supply by tracking the needle and raising the filling liquid. The bottles of the filling fluid are sent to the 12 heads of the turntable by three reversing turntables and rotated clockwise. 12 flexible cutter heads track the aluminum cover (with rubber plug) on the bottle mouth, and the aluminum cover (with the rubber plug) is arranged by the orbits in sequence by the oscillating material and put on the bottle mouth in the bottle transmission. The well filled oral liquid bottle is then sent out from the bottle to turn the machine out of the bottle

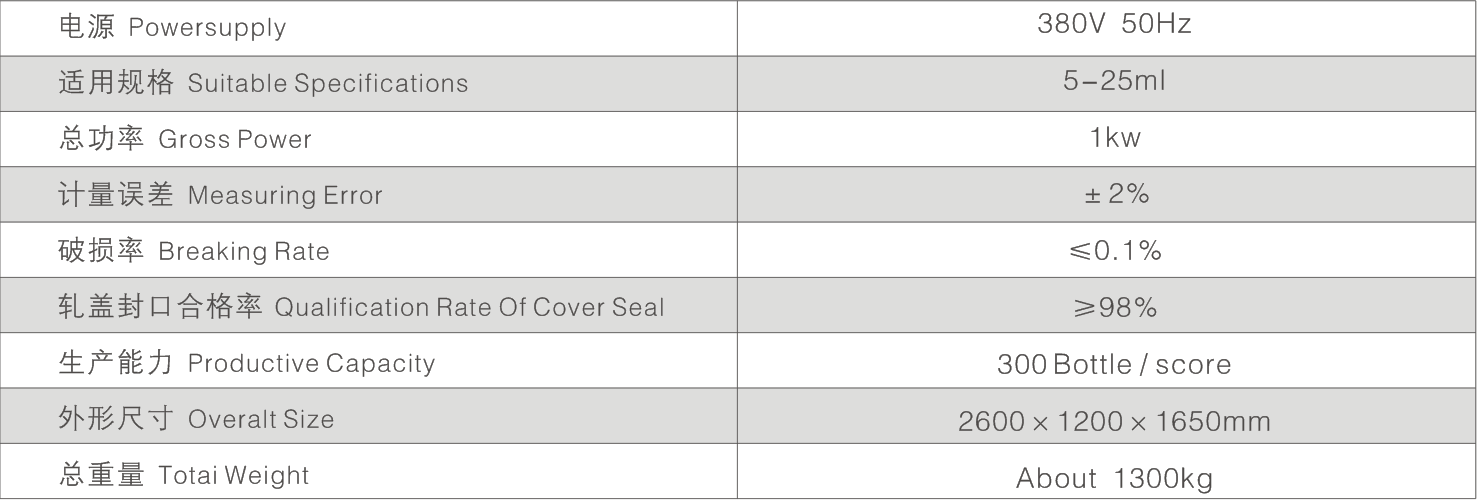

Technical Parameter:
